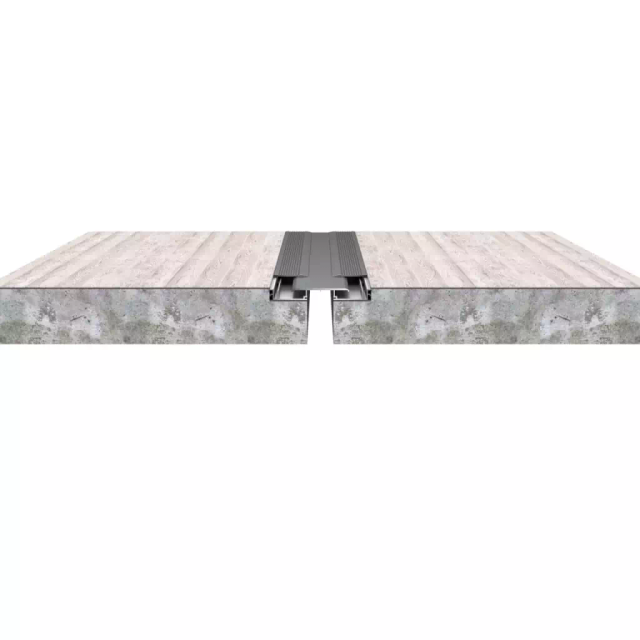

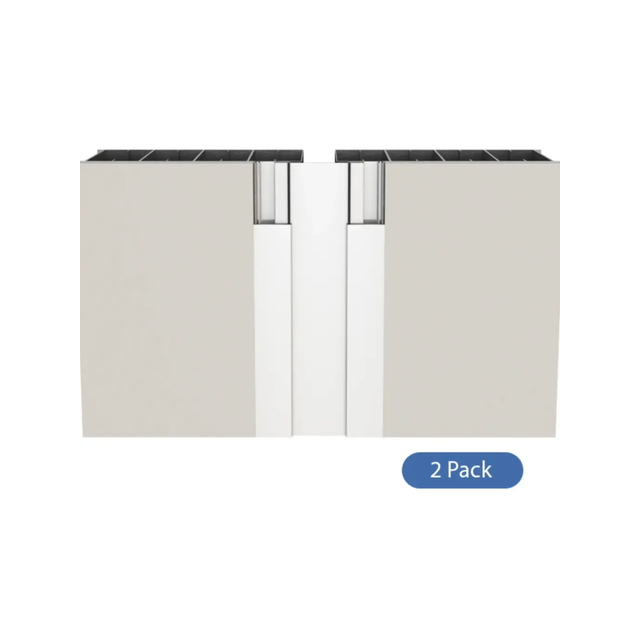

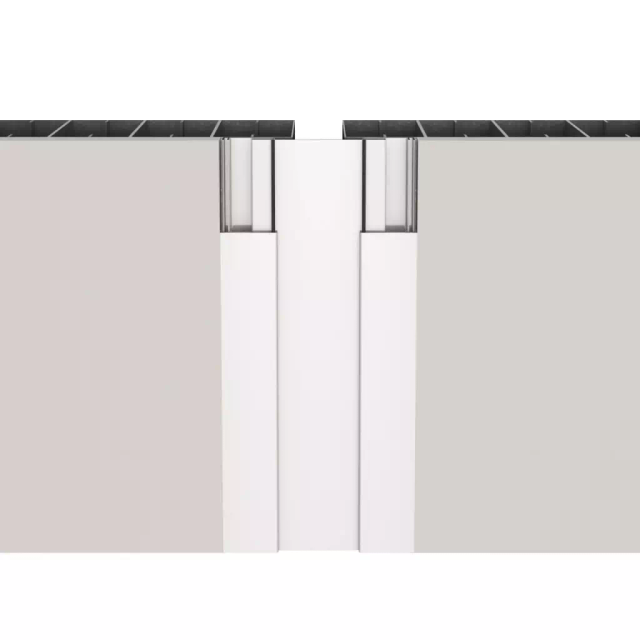

AFW
We’re here to help.
Want assistance? It's easy to get in touch with us - use one of the buttons below.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our Standard Products, which include a selection of materials for quick and easy online purchases.
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Want assistance? It's easy to get in touch with us - use one of the buttons below.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our Standard Products, which include a selection of materials for quick and easy online purchases.
Finishes
-
Light Bronze
-
Medium Bronze
-
Dark Bronze
-
Black
Powder Coat Finishes
(Aluminum Covers Only – Not recommended for floor cover applications)
-
#532 Terra Cotta
-
#581 Forge Red
-
#584 Banner Red
-
#585 Arabian Blue
-
#580 Interstate Green
-
#537 Cordovan Brown
-
#546 Dark Bronze
-
#543 Medium Bronze
-
#548 Light Bronze
-
#563 Seawolf Gray
-
#521 Bone White
-
#518 Colonial White
-
#516 Spanish White
-
#572 Sand Beige
-
#519 Sandstone
-
#559 Mushroom
-
#562 Phantom Gray
-
#560 Onyx Gray
-
#549 Charcoal
-
#512 Black
Kynar 500 and Hylar 5000
(Aluminum Covers Only – Not recommended for floor cover applications)
-
Clear Anodize
Standard
Performance Data
| Model | Joint Width | Min. Opening | Max. Opening | Exposed Surface "A" | Exposed Surface "B" | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|---|
| AFW-100 | 1.00" (25mm) | 0.38" (10mm) | 1.88" (48mm) | 5.00" (127mm) | N/A | 2.00" (51mm) | 0.63" (16mm) |
| AFW-200 | 2.00" (51mm) | 0.38" (10mm) | 3.50" (89mm) | 7.75" (197mm) | N/A | 2.88" (73mm) | 0.63" (16mm) |
| AFW-300 | 3.00" (76mm) | 0.00" (0mm) | 6.25" (159mm) | 10.75" (273mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-400 | 4.00" (102mm) | 1.00" (25mm) | 7.25" (184mm) | 11.75" (298mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-500 | 5.00" (127mm) | 2.00" (51mm) | 8.00" (203mm) | 12.75" (324mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-600 | 6.00" (152mm) | 3.00" (76mm) | 9.00" (229mm) | 13.75" (349mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-700 | 7.00" (178mm) | 2.88" (73mm) | 11.00" (279mm) | 17.00" (432mm) | N/A | 5.00" (127mm) | 0.63" (16mm) |
| AFW-800 | 8.00" (203mm) | 4.00" (102mm) | 12.00" (305mm) | 18.00" (457mm) | N/A | 5.00" (127mm) | 0.63" (16mm) |
| AFWC-100 | 1.00" (25mm) | 0.63" (16mm) | 1.44" (37mm) | 2.38" (60mm) | 2.00" (51mm) | 2.00" (51mm) | 0.63" (16mm) |
| AFWC-200 | 2.00" (51mm) | 1.19" (30mm) | 2.75" (70mm) | 4.25" (108mm) | 3.00" (76mm) | 2.88" (73mm) | 0.63" (16mm) |
| AFWC-300 | 3.00" (76mm) | 1.44" (37mm) | 4.63" (118mm) | 6.25" (159mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-400 | 4.00" (102mm) | 2.44" (62mm) | 5.63" (143mm) | 7.25" (184mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-500 | 5.00" (127mm) | 3.44" (87mm) | 6.38" (162mm) | 8.25" (210mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-600 | 6.00" (152mm) | 4.44" (113mm) | 7.38" (187mm) | 9.25" (235mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-700 | 7.00" (178mm) | 5.00" (127mm) | 9.00" (229mm) | 11.38" (289mm) | 5.25" (133mm) | 5.00" (127mm) | 0.63" (16mm) |
| AFWC-800 | 8.00" (203mm) | 6.00" (152mm) | 10.00" (254mm) | 12.38" (314mm) | 5.25" (133mm) | 5.00" (127mm) | 0.63" (16mm) |
| Model | Joint Width | Min. Opening | Max. Opening | Exposed Surface "A" | Exposed Surface "B" | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|---|
| AFW-100S/B | 1.00" (25mm) | 0.38" (10mm) | 1.88" (48mm) | 5.00" (127mm) | N/A | 2.00" (51mm) | 0.63" (16mm) |
| AFW-200S/B | 2.00" (51mm) | 0.38" (10mm) | 3.50" (89mm) | 7.75" (197mm) | N/A | 2.88" (73mm) | 0.63" (16mm) |
| AFW-300S/B | 3.00" (76mm) | 0.00" (0mm) | 6.25" (159mm) | 10.75" (273mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-400S/B | 4.00" (102mm) | 1.00" (25mm) | 7.38" (187mm) | 11.75" (298mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-500S/B | 5.00" (127mm) | 2.00" (51mm) | 8.00" (203mm) | 12.75" (324mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-600S/B | 6.00" (152mm) | 3.00" (76mm) | 9.00" (229mm) | 13.75" (349mm) | N/A | 3.88" (99mm) | 0.63" (16mm) |
| AFW-700S/B | 7.00" (178mm) | 2.88" (73mm) | 11.00" (279mm) | 17.00" (432mm) | N/A | 5.00" (127mm) | 0.63" (16mm) |
| AFW-800S/B | 8.00" (203mm) | 4.00" (102mm) | 12.00" (305mm) | 18.00" (457mm) | N/A | 5.00" (127mm) | 0.63" (16mm) |
| AFWC-100S/B | 1.00" (25mm) | 0.63" (16mm) | 1.44" (37mm) | 2.38" (60mm) | 2.00" (51mm) | 2.00" (51mm) | 0.63" (16mm) |
| AFWC-200S/B | 2.00" (51mm) | 1.19" (30mm) | 2.75" (70mm) | 4.25" (108mm) | 3.00" (76mm) | 2.88" (73mm) | 0.63" (16mm) |
| AFWC-300S/B | 3.00" (76mm) | 1.44" (37mm) | 4.63" (118mm) | 6.25" (159mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-400S/B | 4.00" (102mm) | 2.44" (62mm) | 5.63" (143mm) | 7.25" (184mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-500S/B | 5.00" (127mm) | 3.44" (87mm) | 6.38" (162mm) | 8.25" (210mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-600S/B | 6.00" (152mm) | 4.44" (113mm) | 7.38" (187mm) | 9.25" (235mm) | 5.25" (133mm) | 3.88" (99mm) | 0.63" (16mm) |
| AFWC-700S/B | 7.00" (178mm) | 5.00" (127mm) | 9.00" (229mm) | 11.38" (289mm) | 5.25" (133mm) | 5.00" (127mm) | 0.63" (16mm) |
| AFWC-800S/B | 8.00" (203mm) | 6.00" (152mm) | 10.00" (254mm) | 12.38" (314mm) | 5.25" (133mm) | 5.00" (127mm) | 0.63" (16mm) |
