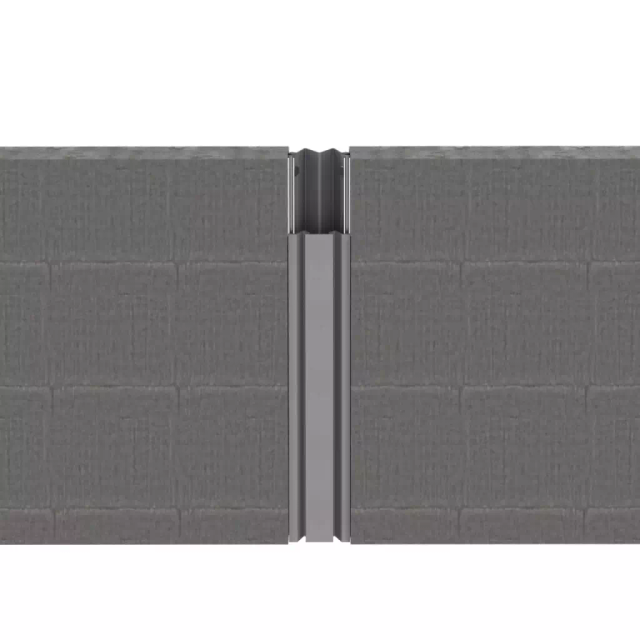

SF (2"-7")
We’re here to help.
Want assistance? It's easy to get in touch with us - use one of the buttons below.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our Standard Products, which include a selection of materials for quick and easy online purchases.
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Want assistance? It's easy to get in touch with us - use one of the buttons below.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our Standard Products, which include a selection of materials for quick and easy online purchases.
Finishes
-
#108 Black
-
#136 Gray
-
#232 White
-
#270 Greige
-
#764 Platinum
Gasket Colors
-
#108 Black
Standard Gasket and Seal
Performance Data
| Model | Joint Width | Min. Opening | Max. Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| SF-200 | 2.00" (51mm) | 1.25" (32mm) | 3.00" (76mm) | 2.00" (51mm) | N/A | N/A |
| SF-300 | 3.00" (76mm) | 1.25" (32mm) | 4.50" (114mm) | 3.00" (76mm) | N/A | N/A |
| SF-400 | 4.00" (102mm) | 1.25" (32mm) | 6.00" (152mm) | 4.00" (102mm) | N/A | N/A |
| SF-500 | 5.00" (127mm) | 1.25" (32mm) | 7.50" (191mm) | 5.00" (127mm) | N/A | N/A |
| SF-600 | 6.00" (152mm) | 1.75" (44mm) | 9.00" (229mm) | 6.00" (152mm) | N/A | N/A |
| Model | Joint Width | Min. Opening | Max. Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| SF-700 | 7.00" (178mm) | 2.50" (64mm) | 10.50" (267mm) | 7.00" (178mm) | N/A | N/A |
| SF-800 | 8.00" (203mm) | 2.50" (64mm) | 12.00" (305mm) | 8.00" (203mm) | N/A | N/A |
| SF-900 | 9.00" (229mm) | 2.50" (64mm) | 13.50" (343mm) | 9.00" (229mm) | N/A | N/A |
| SF-1000 | 10.00" (254mm) | 2.50" (64mm) | 15.00" (381mm) | 10.00" (254mm) | N/A | N/A |
